Protein Mutation Stability Prediction: How to Interpret ΔΔG in Research Workflows

Protein mutation stability prediction is often the first quantitative result a scientist receives after mapping a missense variant onto a protein structure. The output may look simple: a ΔΔG value, a direction such as stabilizing or destabilizing, and sometimes a confidence score. The interpretation is not simple.

A ΔΔG result can help prioritize variants, explain loss of function, guide protein engineering, or decide which mutations deserve biochemical follow-up. It can also mislead when the wrong structure, chain, isoform, biological assembly, or sign convention is used. This guide explains how to interpret protein mutation stability prediction results in research workflows, with a focus on ΔΔG, structural context, and evidence synthesis.

It builds on our broader framework for protein mutation effect prediction and our earlier guide to protein mutation impact prediction, but goes deeper on stability itself.

Why protein mutation stability prediction matters

Protein stability is one of the clearest physical mechanisms by which a missense mutation can change biology. If a substitution destabilizes a folded domain, the protein may misfold, aggregate, degrade faster, lose abundance, or fail to assemble into a functional complex. In clinical genetics, that can contribute to loss of function. In protein engineering, the same signal can determine whether a designed mutation is worth making.

Stability prediction is also attractive because it seems objective. A structure goes in, a mutation is specified, and a ΔΔG estimate comes out. Tools such as FoldX, Rosetta, mCSM-derived methods, DUET, DynaMut2, and newer machine-learning approaches all try to make this step more scalable. DynaMut2, described in Protein Science in 2021, estimates changes in stability and flexibility for single and multiple point mutations using graph-based structural signatures and normal mode analysis.

But stability is only one part of protein function. A mutation can be damaging with little predicted stability change if it alters catalysis, binding, localization, post-translational modification, degradation motifs, allosteric regulation, or a conformational switch. Conversely, a mutation can stabilize a protein and still reduce activity if it locks the protein into an inactive state.

For research teams, the right question is not “what is the ΔΔG?” The better question is: does this ΔΔG result support a biologically plausible mechanism that fits the structure, annotations, literature, and experimental context?

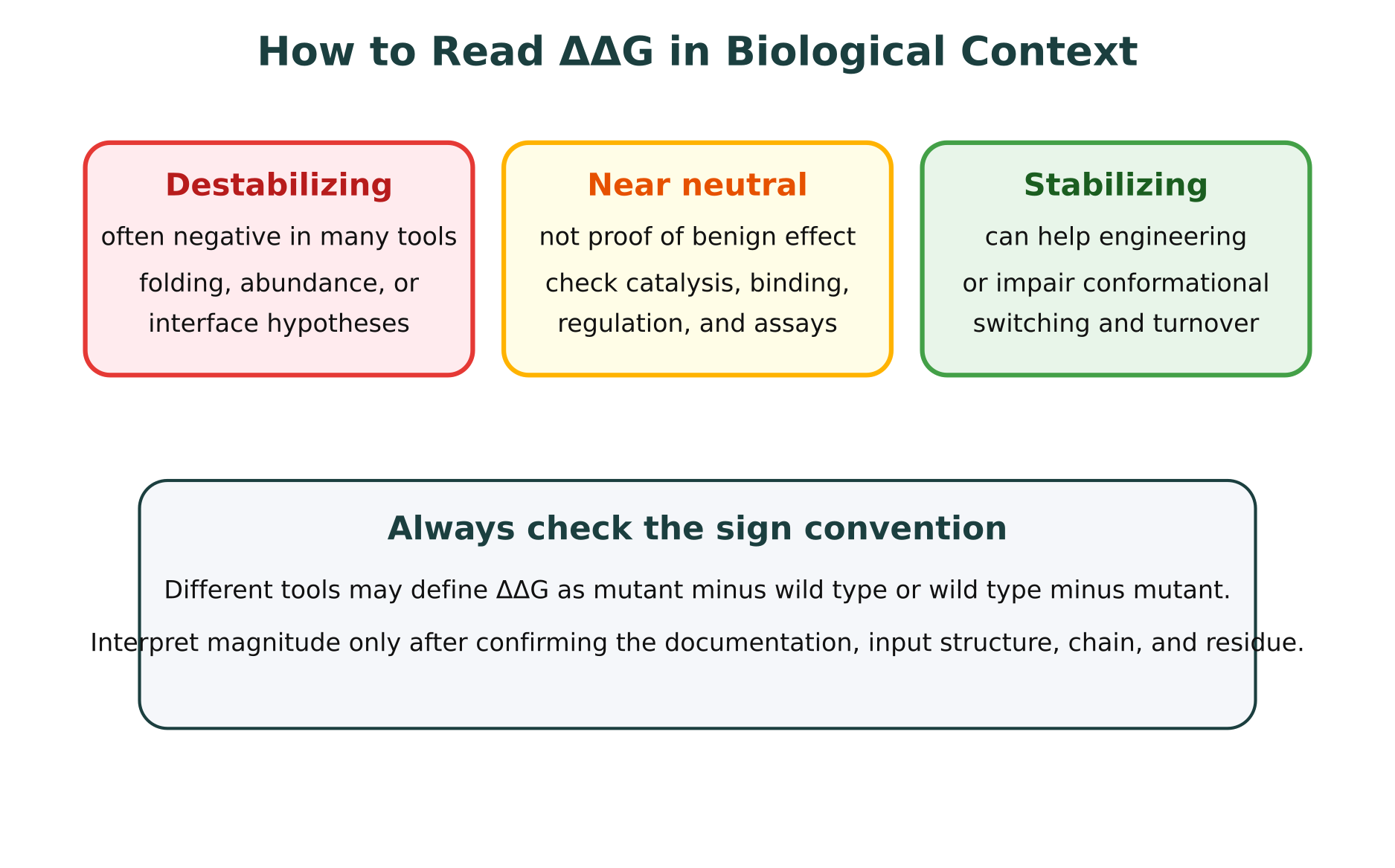

What ΔΔG means in protein stability prediction

ΔG is the free energy difference between folded and unfolded states. ΔΔG is the change in that free energy caused by a mutation. In many protein stability workflows, it is used as a proxy for whether a mutation makes the folded state more or less favorable.

The first caution is that sign conventions vary. Some tools define ΔΔG as mutant minus wild type. Others use wild type minus mutant. Under one convention, a negative value indicates destabilization. Under another, a positive value indicates destabilization. Always check the documentation for the tool being used before interpreting direction.

The second caution is that magnitude is not universal. A value around zero generally suggests a small predicted stability effect, but thresholds such as 0.5, 1.0, or 2.0 kcal/mol should not be treated as universal biological cutoffs. Prediction errors, structure quality, solvent exposure, protein family, and assay endpoint all matter.

A practical interpretation usually begins with four questions:

1. What convention does this tool use? Confirm whether the reported sign means stabilizing or destabilizing.
2. What structure was used? Experimental structure, AlphaFold model, homology model, monomer, complex, domain fragment, and confidence scores can all change interpretation.
3. Where is the residue? A buried core residue, interface residue, catalytic residue, surface loop, and disordered tail should not be interpreted the same way.
4. What biological decision depends on the result? Clinical variant review, protein engineering, disease mechanism research, and drug resistance analysis require different evidence standards.

Start with the structure, not the score

A stability prediction is only as meaningful as the structural model that supports it. Before treating a ΔΔG value as evidence, inspect the input structure.

For experimental structures from the Protein Data Bank, check whether the mutation site is resolved, whether side-chain density is reliable, whether ligands or cofactors are present, and whether the biological assembly matches the functional question. A residue at a dimer interface may look unimportant in a monomer-only model. A mutation near a ligand pocket may be misinterpreted if the ligand is absent.

For predicted structures, confidence matters. AlphaFold 3, published in Nature in 2024, extended structure prediction to biomolecular interactions involving proteins, nucleic acids, ligands, ions, and modifications. That is important for many biological questions, but predicted structures still need quality checks. Low-confidence regions often correspond to disorder or uncertain local geometry. Fine-grained side-chain claims in those regions should be treated cautiously.

A useful inspection checklist includes:

• Is the residue buried, partially buried, or solvent exposed?
• Is it in an alpha helix, beta sheet, loop, transmembrane segment, coiled coil, or disordered region?
• Does it form hydrogen bonds, salt bridges, cation-pi interactions, disulfide bonds, or metal coordination?
• Is it in a catalytic site, binding pocket, protein interface, DNA or RNA contact, or allosteric region?
• Is the affected region confidently modeled or experimentally resolved?
• Does the selected isoform contain the same residue numbering and domain boundaries?

This is why visualization is not optional. Browser-based viewers such as Molstar make it easier to inspect the mutation site, especially when integrated into workflows that also retrieve PDB or AlphaFold structures. For a broader comparison of visualization options, see our guide to PyMOL, ChimeraX, and Molstar.

A practical framework for interpreting ΔΔG

The most useful ΔΔG interpretation combines the numerical prediction with structural and biological context.

A destabilizing prediction is strongest when it agrees with visible structural logic. For example, replacing a buried charged residue that participates in a salt bridge with a small neutral residue may plausibly destabilize a domain. A similar ΔΔG value for a poorly modeled solvent-exposed loop deserves less confidence.

A near-neutral prediction should not be overinterpreted as benign. Protein stability tools often model fold stability better than catalytic chemistry, trafficking, RNA binding, post-translational regulation, or cellular context. A mutation at a catalytic aspartate may have almost no predicted folding effect while still eliminating enzyme activity.

A stabilizing prediction also requires nuance. Protein engineers often seek stabilizing mutations, but biology is full of proteins that need flexibility. Kinases, receptors, transporters, transcription factors, and allosteric enzymes can lose function if a mutation shifts conformational equilibria.

Compare tools by mechanism, not by scoreboard

Protein stability prediction tools are not interchangeable calculators. They differ in training data, input requirements, treatment of dynamics, representation of interactions, and output convention. FoldX uses an empirical force field. Rosetta uses a detailed modeling framework. mCSM-family tools use graph-based signatures. DynaMut2 incorporates structural environment and dynamics. Newer geometric deep-learning methods attempt to learn stability effects from structural and sequence features.

Recent literature also shows why caution is needed. A Protein Science study in 2025 reported that protein stability models can struggle to capture epistatic interactions in double point mutations. That is a reminder that a model calibrated on single substitutions may not generalize to combinations, engineered libraries, or context-dependent protein states.

When comparing tools, ask what each tool is actually estimating:

• Fold stability: Does the mutation change the folded versus unfolded equilibrium?
• Local packing: Does the substitution disrupt steric fit or hydrophobic contacts?
• Dynamics: Does the mutation alter flexibility or normal modes?
• Interface stability: Does the mutation weaken a complex, dimer, ligand interaction, or DNA/RNA binding surface?
• Assay-specific fitness: Does the mutation change activity, expression, binding, growth, or another measured endpoint?

Tool agreement is useful, but only when the tools are relevant to the same mechanism. Three fold-stability predictors agreeing on near-neutral ΔΔG still do not rule out disruption of a phosphorylation motif or an RNA-binding residue.

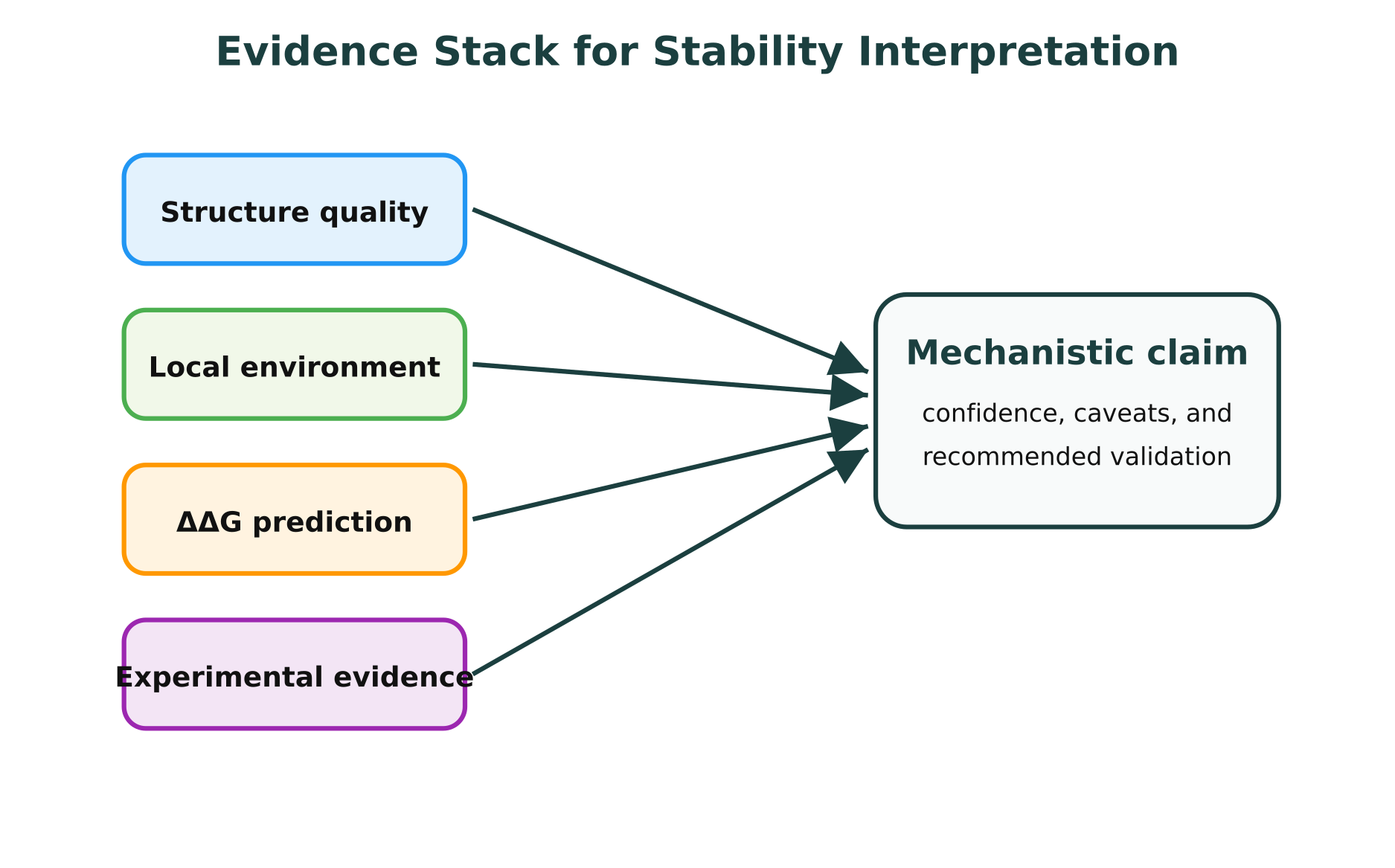

Add annotations, conservation, and experimental evidence

Protein mutation stability prediction becomes much more useful when combined with evidence from curated databases and experiments.

Key evidence layers include:

• UniProt for domains, active sites, binding sites, post-translational modifications, subcellular location, and reviewed functional annotations.
• InterPro and Pfam for conserved domains and protein family context.
• RCSB PDB and AlphaFold DB for experimental and predicted structures.
• ClinVar, OMIM, ClinGen, LOVD, and gnomAD for human variant and population context when the question is clinical or translational.
• MaveDB for multiplexed assays of variant effect. The MaveDB 2024 update, published in Genome Biology in 2025, reported more than seven million curated variant effects from multiplexed functional assays.
• Primary literature for biochemical assays, disease models, protein engineering studies, and mechanistic interpretation.

AlphaMissense, published in Science in 2023, is a useful example of a complementary signal. It classified a large fraction of possible human missense variants by combining protein structure and evolutionary information, but it does not explain every mechanism. A high AlphaMissense pathogenicity score and a destabilizing ΔΔG in a conserved buried domain provide stronger support together than either score alone. Disagreement should trigger review rather than force a conclusion.

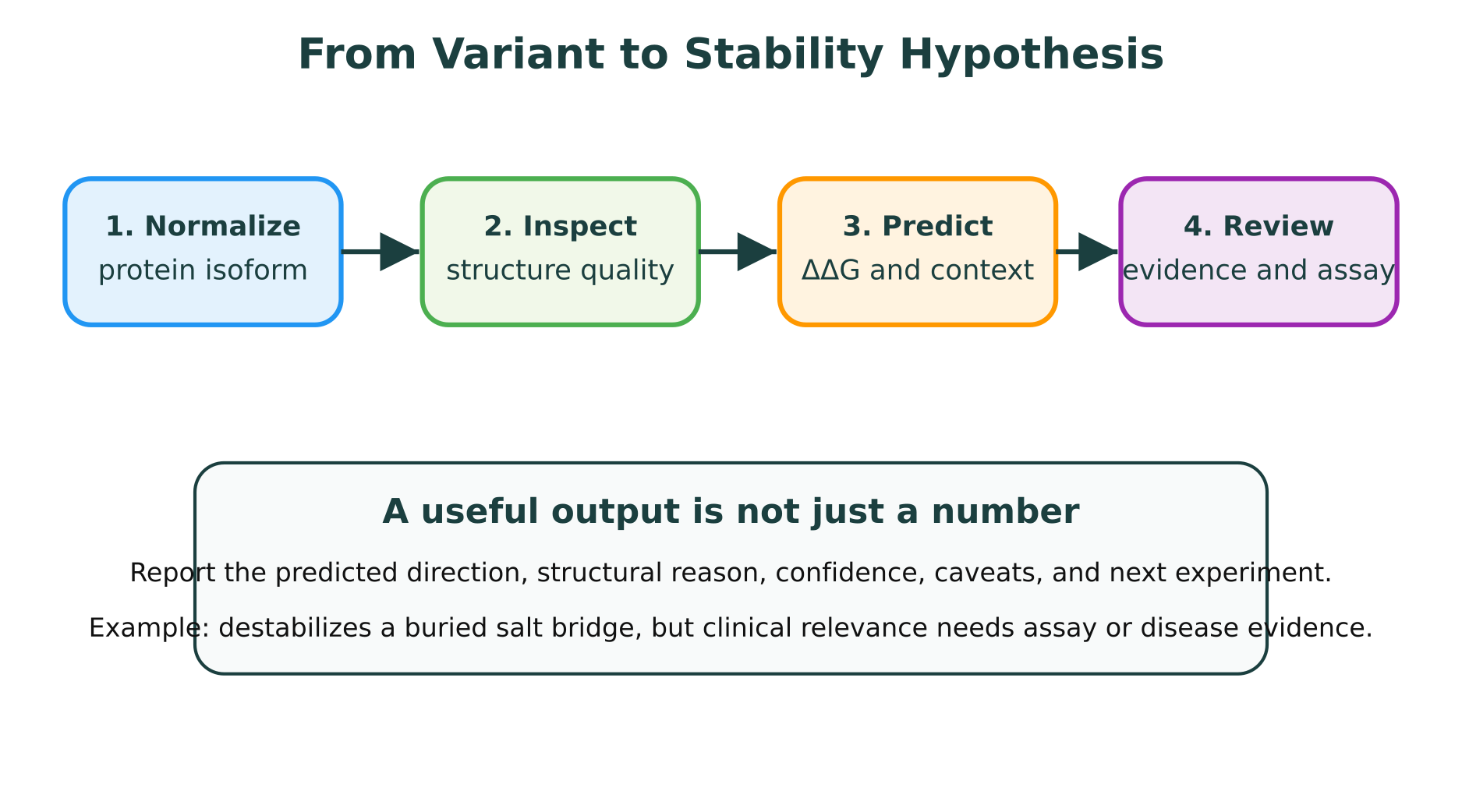

Protein mutation stability prediction workflow for research teams

A reproducible workflow helps prevent stability predictions from becoming isolated numbers in a spreadsheet.

Step 1: Normalize the variant and protein context

Record the gene, transcript, protein accession, isoform, residue numbering, wild-type residue, mutant residue, and biological question. A ΔΔG result tied to the wrong isoform can create a confident but meaningless interpretation.

Step 2: Retrieve the best available structure

Prefer an experimental structure when it covers the residue, resolves the local environment, and represents the relevant biological assembly. Use predicted structures when needed, but check confidence and disorder. For complexes, use a complex structure when the mutation may affect an interface.

Step 3: Inspect the site manually

Before running the tool, inspect the residue in 3D. Note solvent exposure, secondary structure, local contacts, functional features, and model quality. Write a short pre-computational hypothesis, such as “may disrupt buried hydrophobic packing” or “may affect active-site chemistry more than stability.”

Step 4: Run stability prediction and record provenance

Record the tool, version, input structure identifier, chain, mutation notation, sign convention, and output. This provenance matters because different structures can produce different predictions for the same mutation.

Step 5: Compare with orthogonal evidence

Check conservation, domain annotations, nearby known variants, clinical databases, functional assays, and literature. If the prediction supports a mechanism, identify what evidence would falsify or validate it.

Step 6: Synthesize a cautious interpretation

A good output should include the predicted direction, structural rationale, supporting evidence, missing evidence, confidence, and suggested next experiment. For example:

The p.ArgXGln substitution is predicted to destabilize the domain under the tool’s mutant-minus-wild-type convention. The residue appears buried and participates in a salt bridge in a high-confidence structure, which supports a folding or abundance hypothesis. However, no direct functional assay was found, and the biological relevance should be tested with expression, thermal stability, or activity assays.

What AI can automate, and what still needs expert review

AI can reduce the manual work in protein mutation stability prediction by retrieving structures, mapping isoforms, highlighting residues, preparing DynaMut2 inputs, collecting UniProt and ClinVar annotations, summarizing conservation, and drafting a mechanism with citations. That automation is valuable because stability interpretation often fails at the data-gathering step, not because scientists cannot reason about proteins.

Expert review remains essential for:

• choosing the correct isoform and biological assembly,
• judging whether the structure supports site-specific claims,
• checking ΔΔG sign convention and tool assumptions,
• deciding whether a stability hypothesis is relevant to the phenotype or engineering goal,
• interpreting discordant predictors,
• applying ACMG/AMP evidence in clinical contexts,
• selecting validation experiments.

Purna AI’s Molecular Intelligence Platform is designed for this kind of connected workflow. A researcher can retrieve PDB or AlphaFold structures, inspect residues in Molstar, run DynaMut2 stability analysis, and connect the result to domains, conservation, variants, literature, and biological databases in one workspace. The point is not to turn ΔΔG into an automatic verdict. It is to make the evidence trail visible so scientists can spend more time on interpretation.

This is part of the broader shift toward molecular intelligence, where sequence, structure, literature, and database evidence are connected rather than handled in separate tabs. Teams comparing structure prediction options may also find our guide to AlphaFold, Boltz, and ESMFold useful.

Common mistakes to avoid

The most common failure mode is overconfidence. A stability score can look precise even when the input structure is not appropriate. Avoid these mistakes:

1. Ignoring sign convention. Always confirm whether positive or negative values mean destabilization for the specific tool.
2. Using the wrong structure. A monomer can miss an interface. A low-confidence predicted region can make side-chain claims unreliable.
3. Treating near-neutral ΔΔG as benign. Stability is not the only mechanism of protein function.
4. Ignoring dynamics and conformational state. Stabilization can be harmful if flexibility is required.
5. Skipping provenance. Record tool version, input structure, chain, residue numbering, and date.
6. Forgetting experiments. Computational stability prediction should guide follow-up, not replace it.

A concise reporting template

For internal research notes, use a structured template instead of a single score:

This format makes the reasoning auditable. It also helps teams compare variants consistently across projects.

Protein mutation stability prediction is most useful when it is treated as a mechanistic evidence layer. ΔΔG can tell you whether a mutation plausibly changes fold stability, but the research conclusion comes from integrating that value with structure, annotations, conservation, literature, and experiments.

Purna AI’s Molecular Intelligence Platform helps biology teams connect protein structure, DynaMut2 stability analysis, variant interpretation, literature, and 30+ biological databases in one evidence-traceable workspace. Explore the platform at purna.ai. Researchers can apply for up to $10,000 in free credits to run their analyses on MIP.
